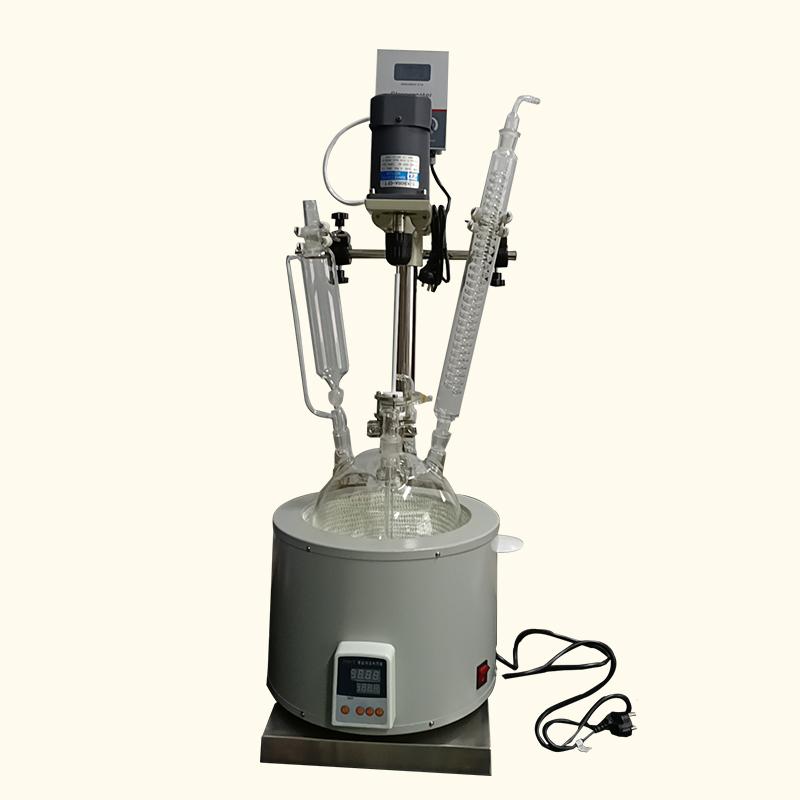

Laboratory single-layer glass Batch Reactor 1L has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.

  • Item no.:

    DF-5L
  • Product origin:

    Xiamen, China
  • Capacity:

    1-5L
  • Voltage:

    220V 50Hz
  • Certificate:

    CE certificate
  • Warranty:

    1 year

1)Single Layer Glass Reactor with  Heating Bath/Heating Mantle 1l, 2l, 3l, 5l, 10l, 20l, 30l, 50l, 100l, 150l, 200l.

2)Double Layer Jacketed Glass Reactor 1l, 2l, 3l, 5l, 10l, 20l, 30l, 50l, 100l, 150l, 200l.

3)Triple Layer Jacketed Glass Reactor 1l, 2l, 3l, 5l, 10l, 20l, 30l, 50l, 100l, 150l, 200l.



Support OEM&ODM .

Support Customization.

All products have CE&ISO certification.



Model

DF-01L

DF-02L

DF-03L

DF-05L

 Capacity (L)

1

2

3

5

Motor power (W)

40

60

60

90

Stirring speed (rpm)

60 - 1000

60 - 1000

60 - 1000

60 - 1000

Dia. Stirring Paddle (mm)

Φ7

Φ7

Φ7

Φ7

Power(Kw)

1

1

2

2

Vacuum degree

0.098Mpa

0.098Mpa

0.098Mpa

0.098Mpa

Stirring Rod

Stainless steel inside and PTEF outside

Voltage ( V / Hz )

220V/50Hz Or customize 110V

Discharge valve

PTFE ( Teflon ) Bottom Discharge Valve

Size(mm)

360*300*900

360*300*900

390*330*1000

390*330*1000

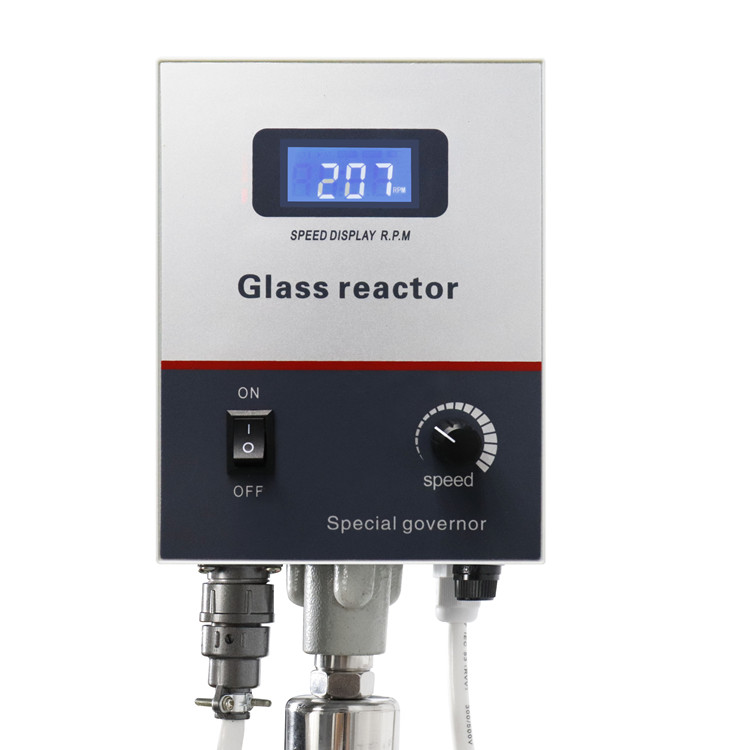

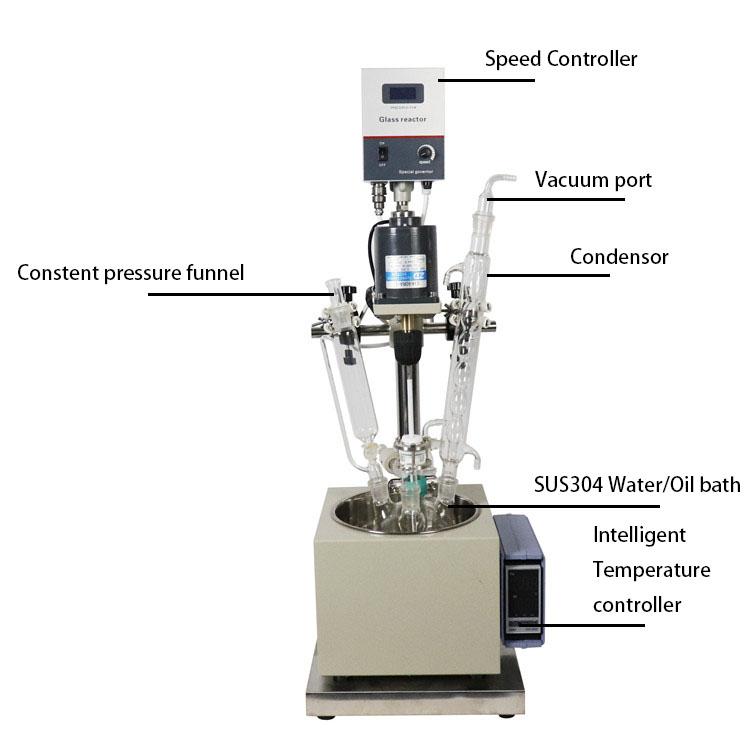

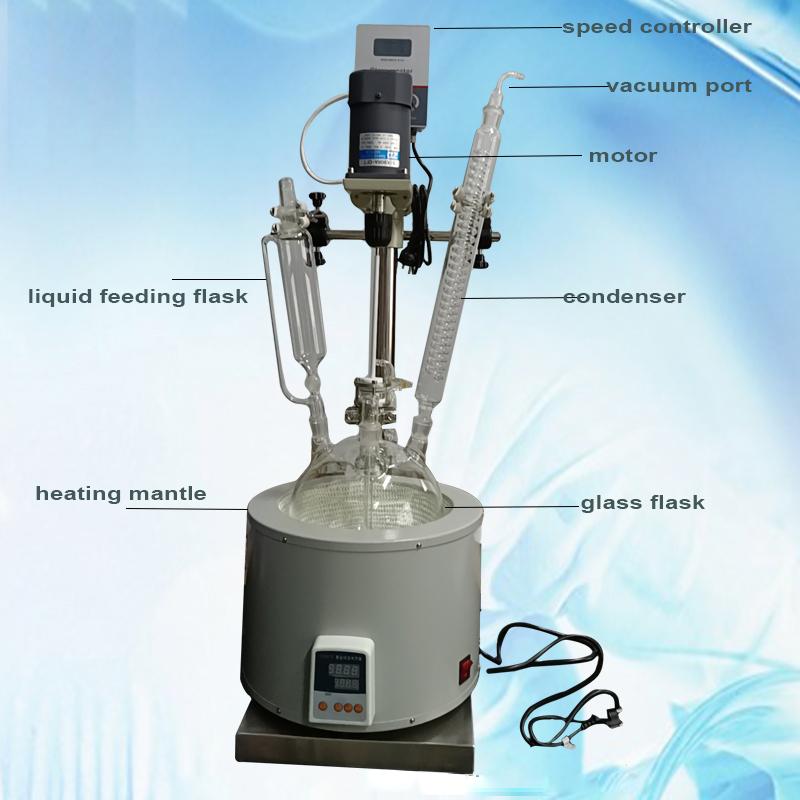

Speed controller

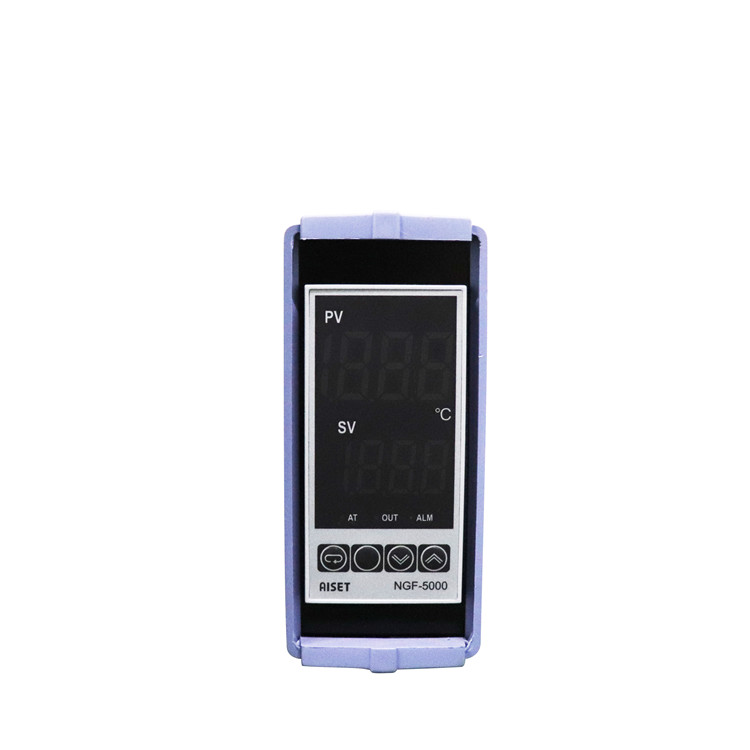

Temperature controller

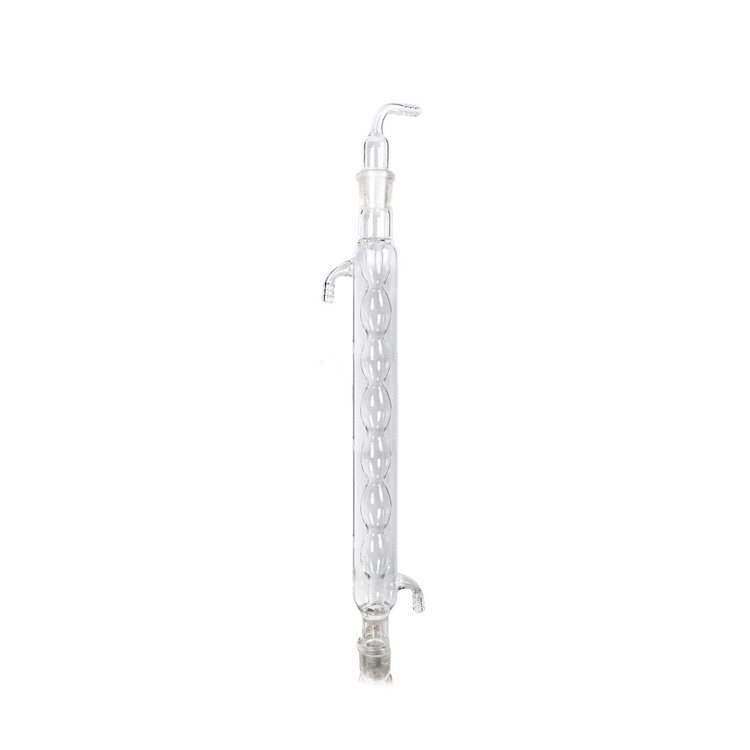

Condenser

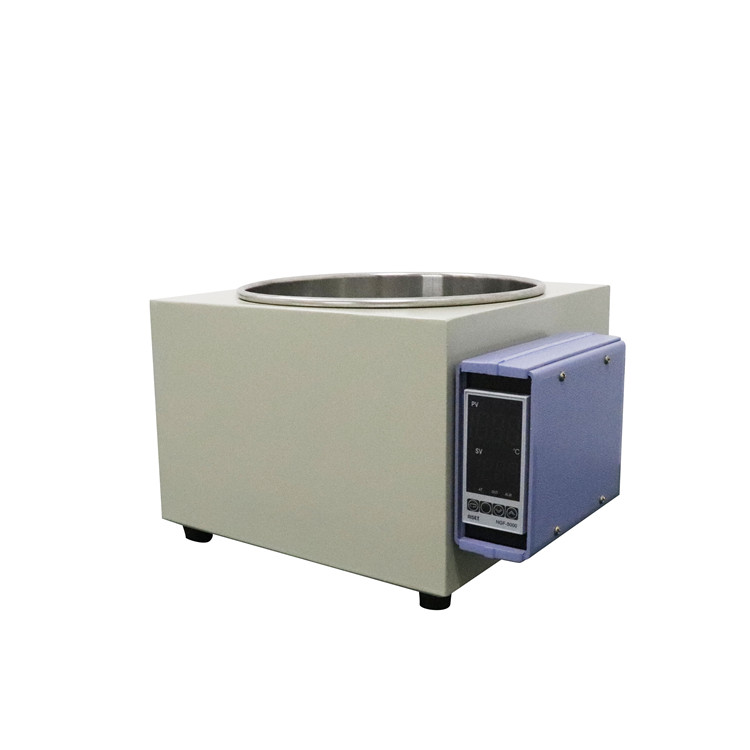

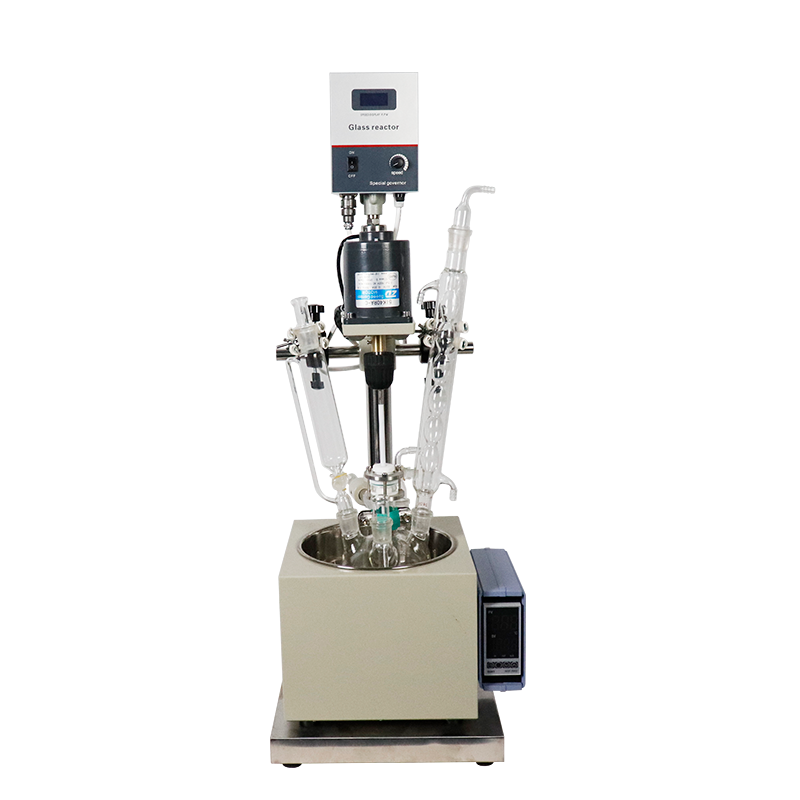

Bath heating

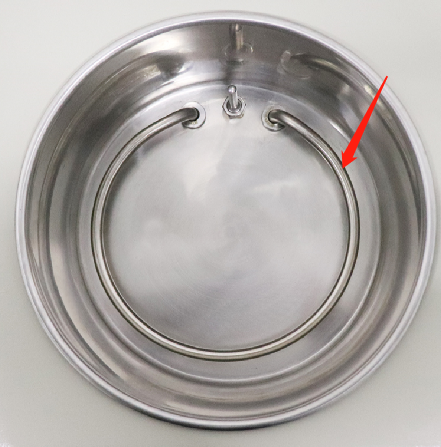

Heating pipe
