product introduction

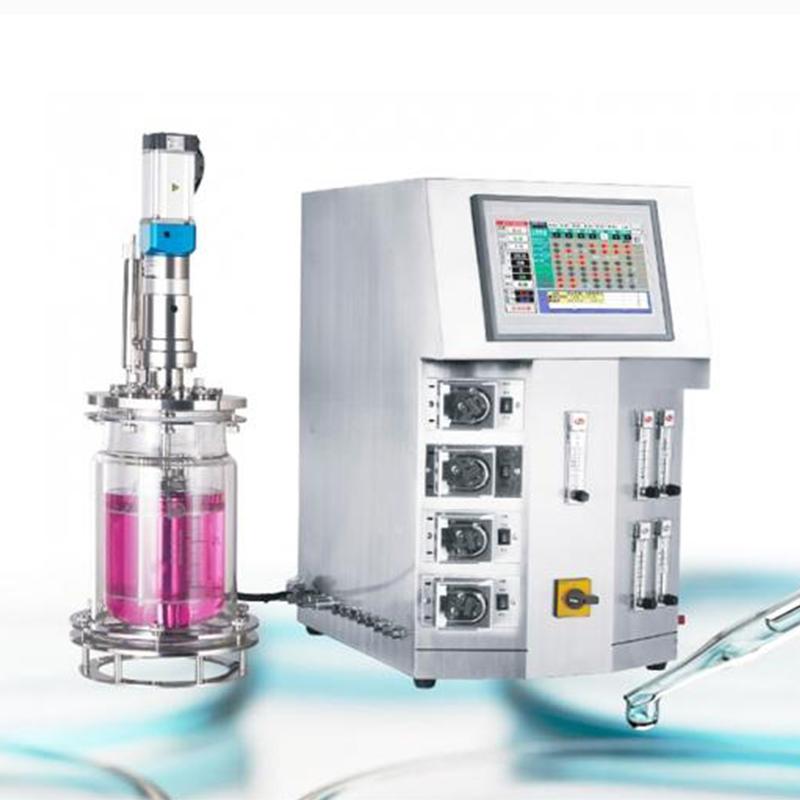

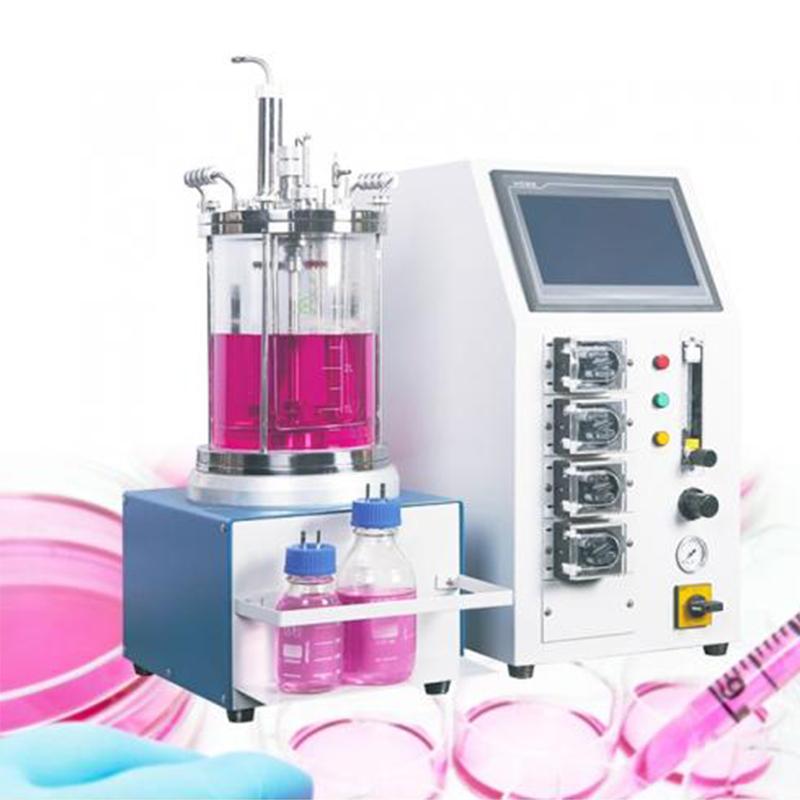

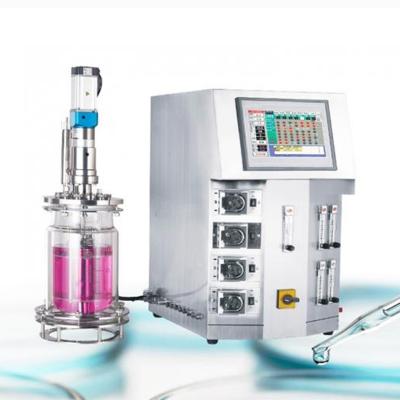

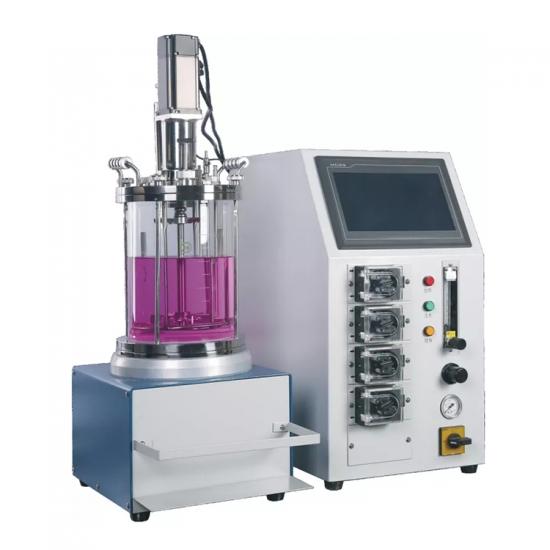

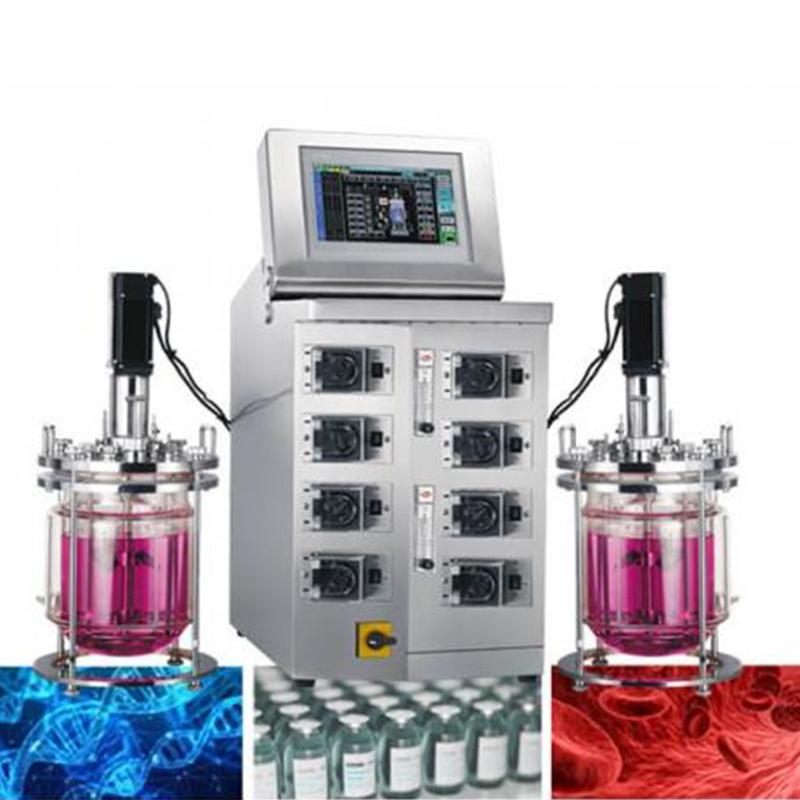

Laboratory Fermenter Bioreactor

Product Description

OLLITAL offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.

Control Unit	OLT100-C2
Digital controller, colored touch screen	●
Control Capabilities
Temperature, DO, agitation speed	●
Adding acid/alkali/CO2 to control PH	●
Rotameter	●
Low noise stirring motor	●
Peristaltic pump	8pcs
Peristaltic pump	For PH (acid/alkali), deform, feeding
Process Data Recording
Temperature control	Process sequence control
Temperature control	Electric heating sleeve with bottom water to control heating / cooling
PH control	Range: 2~12（±0.01)，display: 0~14（±0.01), PID，auto control，autoweighing，system calibration
DO control	Range: 0~150%，±3%，International eletrode and shielded wire detection
Defoam control	Defoaming electrode, mechanical compression defoaming blade
Defoam control	Automatic foam detection, peristaltic pump automatically add defoamer in proportion to time
Agitation control	Servo motor, PID control, stepless speed regulation
Gas supply control	1 line（Air/O2），Rotamater
Culture Vessel
PH electrode, cable	●
DO electrode, cable	●
Temperature sensor Pt 100	●
Foam electrode, cable	●
Options
Gas mixing options（Air、O2、CO2、N2）	○
Cleanliness detection	○
Online live cell detection	○
Automatic vessel pressure control	○
Top Aeration	○
TMFC (Thermal Mass Flow Controller)	○
CO2 detection	○
Redox	○
Exhaust detection analysis	○
Liquid Level	○
Filling weighing system	○
Methanol and ethanol content online detection	○
Additional feed pump	○
Variable speed pump	○
Upper controller	○
Control Tower
Controlling	Industrial PC
Display \| Operation	Touch Panel 10“\| Touch screen
Communication	RS485
Housing Material	SUS304
External Connection
USB	1pcs，Data export
Balance connection	2 * RS485
Sensor type	PT100

Vessel Technical Data

Culture Vessel	1L	2L	3L	5L	7L	10L
H:D ratio	≈1:2
Total volume	1.1L	2.7L	3.5L	5.8L	7.9L	11.2L
Working volume	0.8L	2.0L	2.6L	4.4L	6.0L	8.4L
Minimal working volume	0.3L	0.7L	0.9L	1.5L	2.0L	2.8L
Agitation speed range	5~1000rpm
Motorpower	0.18Kw	0.4Kw	0.4Kw	0.4Kw	0.4Kw	0.75Kw
Impeller to vessel diameter ratio	1:2
Surface treatment	Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um
Material \| Pressure	SUS316L, Borosilicat glass\| \| 0.10Mpa（Max 0.15Mpa）
Vessel Configuration
Low noise stirring motor	●
Autoclavable sterilization \| Sterilization in place	● \| ○
Magnetic drive \| mechanical drive	● \| ○
Storage bottle [2pcs]	●
Exhaust condenser [water cooling]	●
Customizable blade	○
Custom port	○
Electrical heating \| Jacketed heating	● \| ○
